Abstract
Example
Terminologies

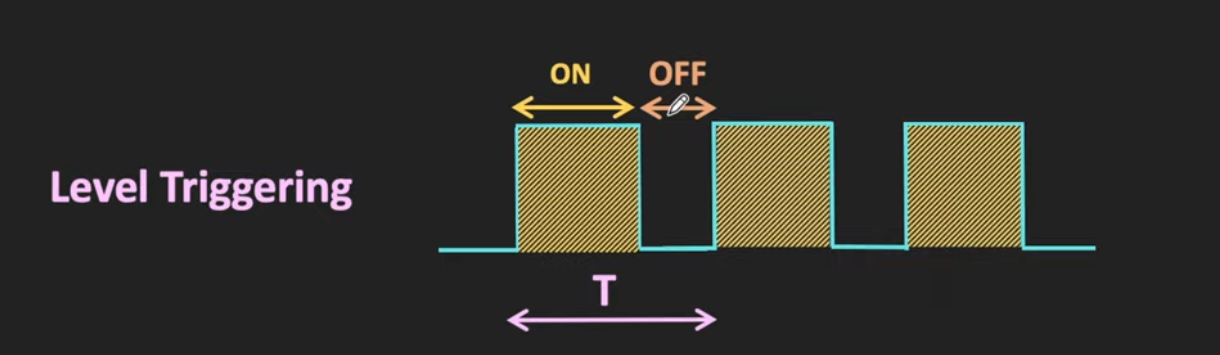

Level Sensitive
- Also known as Pulse-triggered
- Output changes immediately with any change in the input as long as the control signal (Clock Signal, high in the diagram) is active
- Active High when level sensitive is high
- Active Low when level sensitive is low
